仕様図

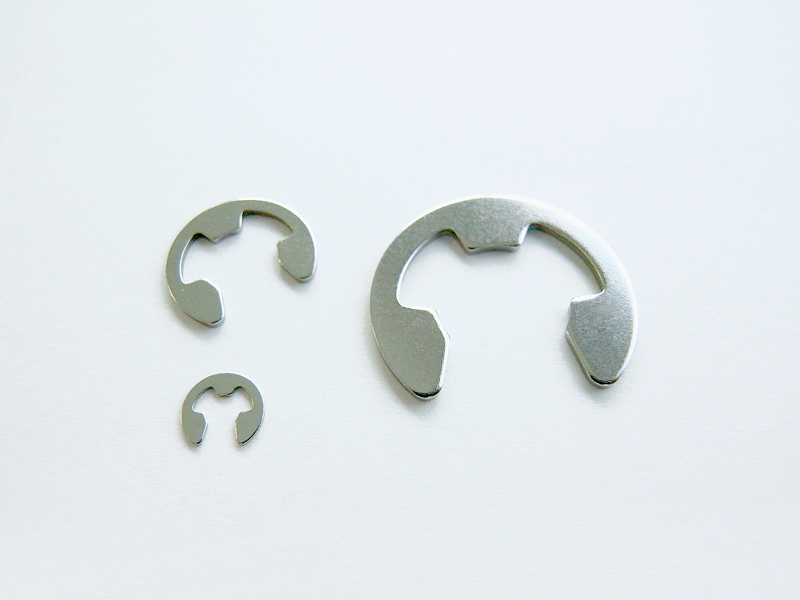

Ｅリング (E型止め輪) 一覧
絞り込み検索フォーム
製品一覧
検索結果8 件中1-8 件を表示
| 製品番号 | 呼び径 | D1 (mm) | φd (mm) | φD (mm) | H (mm) | t (mm) | b (mm) | D2 (mm) | A (mm) | B (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ER-0.8x2 | 0.8 | 1～1.4 | 0.8 ＋0/-0.08 | 2 ±0.1 | 0.7 +0/-0.25 | 0.2 ±0.02 | 0.3 | 0.8 +0.05/-0 | 0.3 +0.05/-0 | 0.4 min |
| ER-1.2x3 | 1.2 | 1.4～2 | 1.2 ＋0/-0.09 | 3 ±0.1 | 1 +0/-0.25 | 0.3 ±0.025 | 0.4 | 1.2 +0.06/-0 | 0.4 +0.05/-0 | 0.6 min |
| ER-1.5x4 | 1.5 | 2～2.5 | 1.5 ＋0/-0.09 | 4 ±0.2 | 1.3 +0/-0.25 | 0.4 ±0.03 | 0.6 | 1.5 +0.06/-0 | 0.5 +0.05/-0 | 0.8 min |
| ER-2.0x5 | 2 | 2.5～3.2 | 2 ＋0/-0.09 | 5 ±0.2 | 1.7 +0/-0.25 | 0.4 ±0.03 | 0.7 | 2 +0.06/-0 | 0.5 +0.05/-0 | 1 min |
| ER-2.5x6 | 2.5 | 3.2～4 | 2.5 ＋0/-0.09 | 6 ±0.2 | 2.1 +0/-0.25 | 0.4 ±0.03 | 0.8 | 2.5 +0.06/-0 | 0.5 +0.05/-0 | 1 min |
| ER-3.0x7 | 3 | 4～5 | 3 ＋0/-0.09 | 7 ±0.2 | 2.6 +0/-0.25 | 0.6 ±0.04 | 0.9 | 3 +0.06/-0 | 0.7 +0.1/-0 | 1 min |
| ER-4.0x9 | 4 | 5～7 | 4 ＋0/-0.12 | 9 ±0.2 | 3.5 +0/-0.25 | 0.6 ±0.04 | 1.1 | 4 +0.075/-0 | 0.7 +0.1/-0 | 1.2 min |
| ER-5.0x11 | 5 | 6～8 | 5 ＋0/-0.12 | 11 ±0.2 | 4.3 +0/-0.3 | 0.6 ±0.04 | 1.2 | 5 +0.075/-0 | 0.7 +0.1/-0 | 1.2 min |
